black dot+ ID office chair

The ergonomic office chair

With the black dot+ ID, we want to offer you more than just an ergonomic chair. Our aim is to provide each person with the best possible seating solution, according to their body’s own requirements, with a custom-made product.

By using different insertable pads, individually tailored backrests can be created and spinal column misalignments can be optimally supported when sitting.

Design your own unique Sedus product – after all, maximum comfort requires customised solutions.

Our configurator guides you step by step through the various options and customisation possibilities of the product. At the end of the configuration process, you can request a non-binding quote, download images and planning data and test the product directly in the room using augmented reality.

You can call up your personal configuration again at any time using your personal PIN code – just save it, come back later and make adjustments. Let's go!

CONFIGURE PRODUCT NOW

How black dot + ID works

The perfect office chair must be individually adaptable in order to meet the personal requirements of the user. As an example – when choosing a mattress or even a simple shoe insole, there will always be personal considerations to take into account. Well-being and comfort, as well as an improvement of postural problems or medical conditions, will be the key considerations. In addition to the basic functions of an ergonomic office chair, black dot + ID can specifically address these requirements using its unique inlay cushions.

Unique inlay upholstery

Our extensive selection of cushions with many different sizes, depths and degrees of hardness allow all the requirements of the user to be met. Depending on the length of the torso and the posture of the user, different positions of the inlay pads are possible.

Two different foam types allow for many different levels of support.

In just a few steps you can find your individual

black dot+ ID

FIND CONTACT PERSON

Examples of use

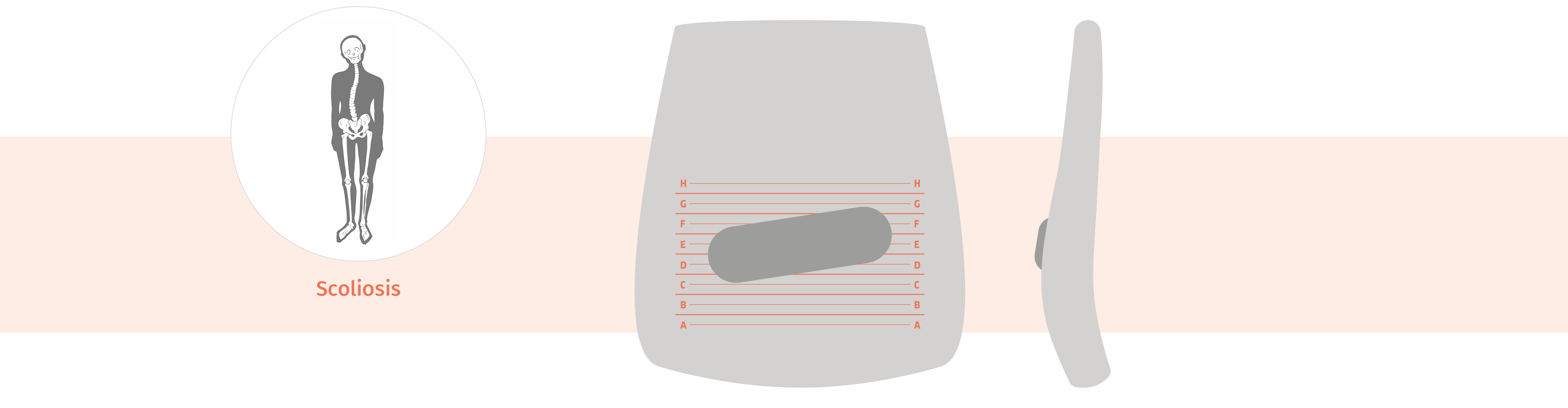

Scoliosis

A lateral deviation of the spine from the longitudinal axis, a so-called scoliosis, is often accompanied by special needs for an office swivel chair. Qualified staff can provide a targeted response in these special cases and place the cushion inserts according to the special requirements.

The black dot+ ID cushion inserts offer the possibility to place the lumbar support in such a way that the user is always optimally supported.

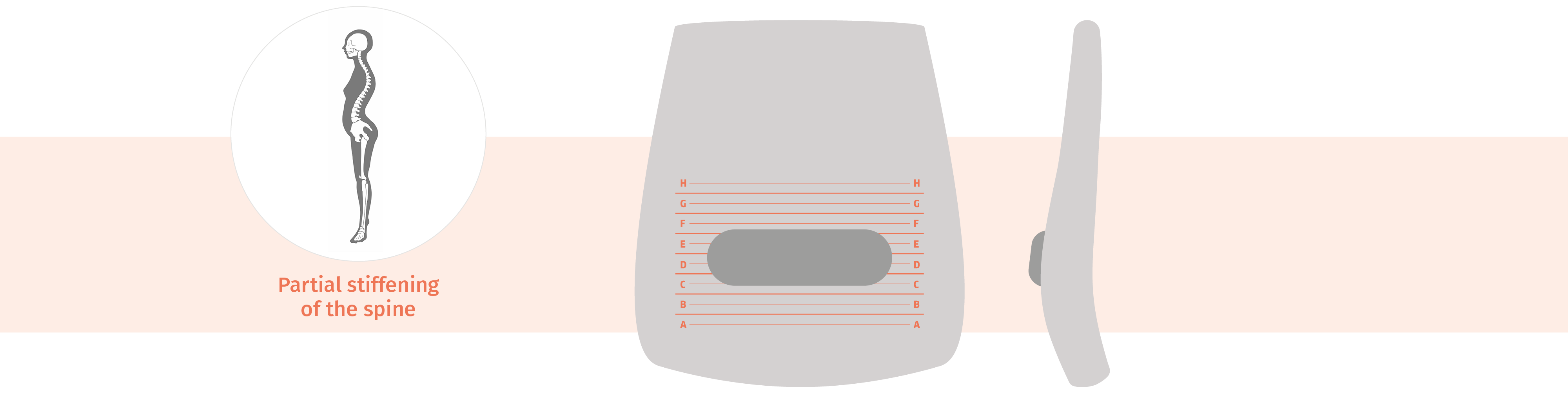

Spine specialities

In the case of various spinal disorders, more or less pronounced support can be provided by the lordosis insert.

The different shapes and foam hardnesses of black dot+ ID upholstery inserts make it possible to create an exact fit.

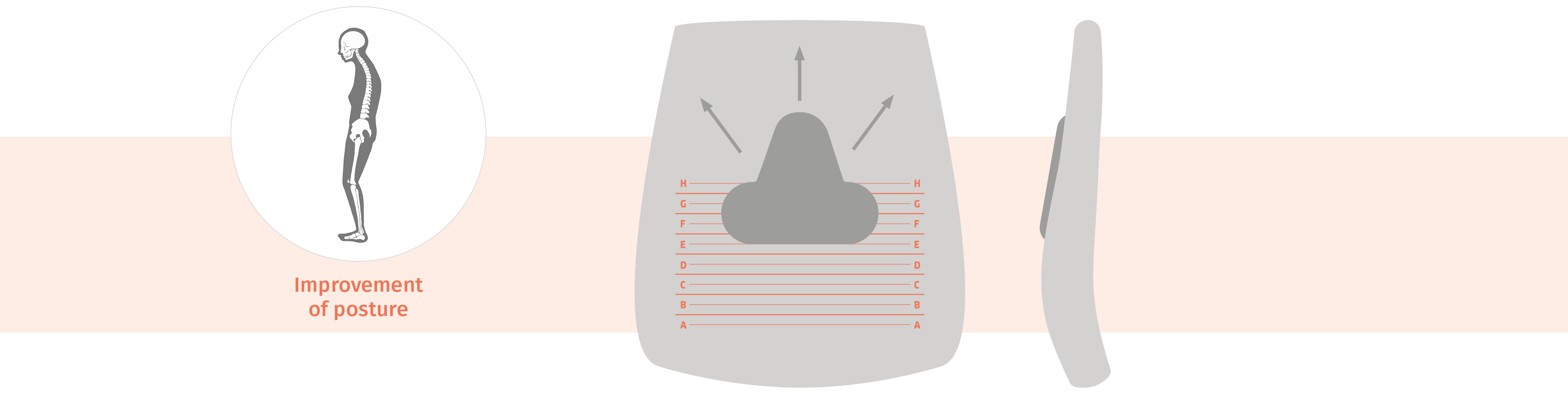

Improvement of posture

Working regularly in front of a screen often leads to poor posture. Tension and pain can develop which could ultimately result in scoliosis. Very special chair requirements are then needed for an office chair.

The black dot+ ID cushion insert can be positioned to optimally support the lumbar region.

Design features

With black dot+ ID you can adapt your office swivel chair to your individual needs.

Cushion insert

Ergonomic inlay pads make the backrest a custom-made product.

Armrests

The 4D armrests are optimally adjustable in 4 directions.

Colours and materials

Colours and materials can be individually chosen from the Sedus fabric collections. Matching contrasting yarns create a visual highlight.

Neck support

The neck support is individually adjustable in both height and remove the full stop after depth.

Backrest

The backrest can be selected in three different heights.

Coccyx recess

The optional coccyx recess in the seat cushion is not visible through the overlying cover.

Extensive standard configuration

Patented seat depth adjustment
Dorsokinetics
Sedo Lift
Seat tilt adjustment 0°to 4° with two intermediate positions
4D-adjustable armrests
“Similar Mechanism” (synchronous movement)
Body opening angle up to 45°

1. Cushion insert

Ergonomic inlay pads make the backrest a custom-made product.

2. Armrests

The 4D armrests are optimally adjustable in 4 directions.

3. Colours and materials

Colours and materials can be individually chosen from the Sedus fabric collections. Matching contrasting yarns create a visual highlight.

4. Neck support

The neck support is individually adjustable in both height and remove the full stop after depth.

5. Backrest

The backrest can be selected in three different heights.

6. Coccyx recess

The optional coccyx recess in the seat cushion is not visible through the overlying cover.

7. Extensive standard configuration

Patented seat depth adjustment
Dorsokinetics
Sedo Lift
Seat tilt adjustment 0°to 4° with two intermediate positions
4D-adjustable armrests
“Similar Mechanism” (synchronous movement)
Body opening angle up to 45°

black dot model comparison

black dot air

black dot

black dot net

black dot+ ID

black dot 24

Backrest

3D knitted membrane in
5 colours

Backrest

Upholstered

Backrest

Mesh membrane in 5 colours

Backrest

Upholstered with individual ergonomic inlay upholstery

Backrest

Upholstered or mesh membrane in 5 colours

High backrest

1 height
(high)

High backrest

3 heights available
(low, medium, high)

High backrest

1 height
(high)

High backrest

3 heights available
(low, medium, high)

High backrest

1 height
(high)

User weight

130 kg

User weight

130 kg

User weight

130 kg

User weight

130 kg

User weight

150 kg

Model colour

Black, pale grey

Model colour

Black, pale grey

Model colour

Black, pale grey

Model colour

Black

Model colour

Black

Base

Plastic

Base

Aluminium, plastic

Base

Aluminium, plastic

Base

Aluminium

Base

Aluminium

Armrests

Height-adjustable plastic armrests*

Armrests

Height-adjustable plastic armrests*

Armrests

Height-adjustable plastic armrests*

Armrests

4D armrests with soft-touch covers

Armrests

4D armrests with soft-touch covers and polished aluminium support*

Height-adjustable lumbar support

Mechanism

Similar mechanism with tension control*

Mechanism

Similar mechanism with tension control*

Mechanism

Similar mechanism with tension control*

Mechanism

Similar mechanism with tension control* and forward tilt 0°, -2°, -4°

Mechanism

Similar mechanism with tension control*

Seat height adjustment

Sedo Lift III*

Seat height adjustment

Sedo Lift III*

Seat height adjustment

Sedo Lift III*

Seat height adjustment

Sedo-lift mechanism*

Seat height adjustment

Sedo-lift mechanism*

Dorsokinetics

Matching counter chair

Matching visitor chair

Options

	Standard	Optional
Model colour	Black
Lumbar support	without	Lumbar pad (contour foam or elastic foam)
Armrests	4D armrests with 360° rotatable soft-touch covers	4D armrests with 360° rotatable imitation leather covers
Seat	Sliding seat (60 mm adjustment range)	Sliding seat (100 mm adjustment range) Sliding seat (60 mm adjustment range) with coccyx relief Sliding seat (100 mm adjustment range) with coccyx relief
Mechanism	Similar mechanism with tension control and forward tilt 4°
Seat height-adjustment	Sedo-lift mechanism (seat height 400 to 500 mm)	Gaslift (seat height 370 to 460 mm) Sedo-lift mechanism "high" (seat height 460 to 560 mm)
Base	Aluminium base black	Aluminium base white aluminium Aluminium base polished
Castors	Hard castors for soft flooring	Soft castors for hard flooring
Miscellaneous		Backrest support with stronger backrest pressure Backrest support with weaker backrest pressure Comfort neck support with height and tilt adjustment

Technical specifications

User weight	• Recommended for user weights up to 130 kg
Backrest	• Optional ergonomic inlay upholstery for precise support of the lumbar vertebra. By means of the zips in the fabric cover and the interior scale markings on the backrest, the pad can be easily positioned and also adjusted, if required. Available in five different sizes and depths. Two different types of foam with different degrees of hardness: made of firmer contour foam or VISCO-elastic foam, which adapts perfectly to the body and thus reduces pressure points • Due to the dorsokinetic joint the backrest has an additional degree of freedom of 15° for backward movements and of 8° for lateral movements of the upper body • Upholstery thickness 60 mm, consists of 50 mm shaped foam and a 10 mm comfort foam layer • Back of backrest partially upholstered for pleasant feel to the touch
Mechanism	• Similar mechanism with tension control: balanced force curve due to coordinated spring concept • Seat and backrest move completely synchronised with the body • Synchronicity relationship between seat and backrest 1:2.7 • Adaptation to different user weights enables sensitive latching of the rapid adjustment mechanism (leaning pressure 450-1200N and 550-1500N (stronger spring) [10N=1kg]) • Backrest inclination to approx. 32°, can be locked in virtually continuously variable manner (11 different settings) • Permanent back support even when the backrest is inclined backwards at a wide angle, due to uniform force distribution of the mechanical springs • Seat tilt adjustment (+0°; -2°; -4°), less pressure against the thighs without the user sliding out of the seat pan
Seat	• Anatomically shaped seating surface with pelvis support, seat hollow and rounded front edge of seat • Shaped foam (polyurethane foam) • Upholstery thickness: 50 mm in the middle and 50 mm at the front edge of the seat • Sliding seat with adjustment range 60 mm (seat depth 400-460 mm), width 470 mm, optionally with coccyx relief • Optional sliding seat with adjustment range 100 mm (seat depth 380-480 mm), width 470 mm, also possible with coccyx relief
Seat height-adjustment	• Sedo-lift mechanism: complete cushioning of body weight, even in lowest seating position, no compression of the spine when sitting downprovided by hydraulic interlock, completely free of wear and tear, mechanical failure or gas lift replacement, height adjustment between 400-500 mm • Optional gaslift for infinitely variable height adjustment 370-460 mm • Optional Sedo-lift mechanism "high", height adjustment between 460-560 mm
Base	• Aluminium base, powder-coated, black, white aluminium or polished aluminium • Hard or soft castors with 65 mm diameter • The backrest support always matches the star base, so a swivel chair with a polished star base automatically comes with a polished backrest support. On a swivel chair with powder-coated base, the supports are always black
Standards/Certificates	• GS label by TÜV Rheinland LGA Products GmbH/DIN EN 1335 • QUALITY OFFICE quality seal • GREENGUARD certified • AGR quality seal - Healthy Backs Campaign
Warranty	• 5 years • 30 years for Sedo-lift mechanism
