open up
Swivel chair, Meeting & conference chair
open up – The dynamic office revolution
This unusual swivel chair features a reclining angle of up to 45 degrees; a value which, when combined with a dorsokinetically suspended backrest, is achieved by no other chair on the market. The flexible backrest connection ideally supports the back during all rotating and lateral movements.
Dorsokinetic mechanism
With the flexible backrest connection, open up supports you at all times. The backrest follows your every movement. Sideways. Backwards.
Lumbar support
Height-adjustable strain-relief for the lower back. To ensure that the backrest fits perfectly to your back.

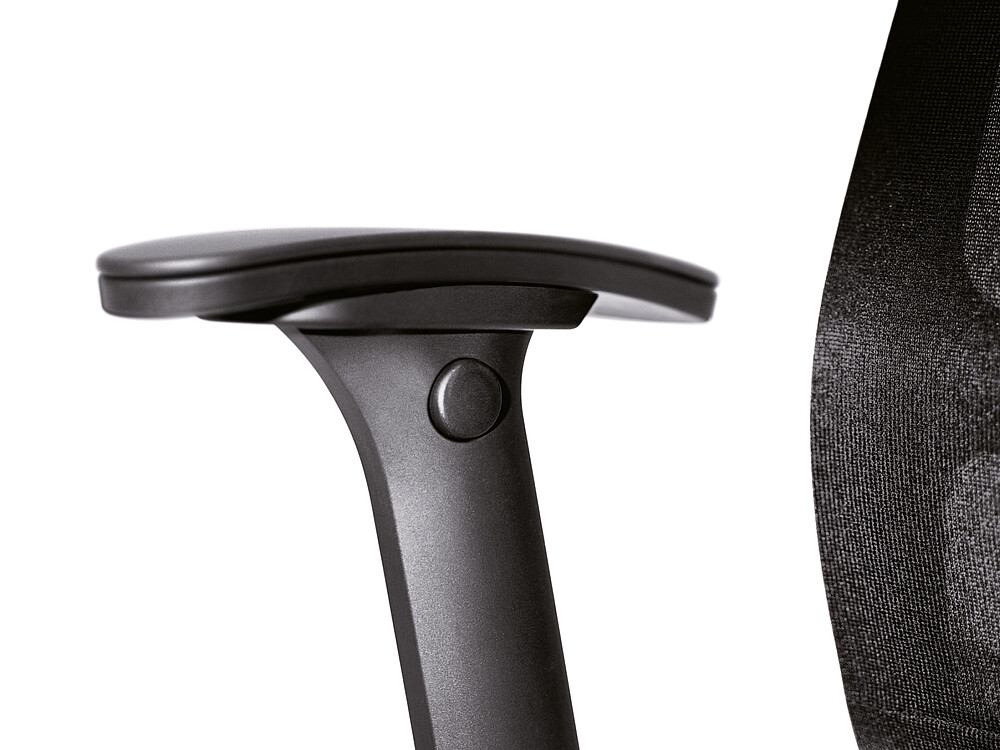

3D armrests
Comfort that adapts. In every direction. In Soft-touch, with leather upholstery or gel insert.
Variety
open up with membrane-covered backrest, polished aluminium base.
open up with flat cushion, polished aluminium base.
open up with flat cushion, aluminium base, powder-coated in white aluminium.
open up with flat cushion, polished aluminium base, without armrests.
open up with membrane-covered backrest, headrest, polished aluminium base.
open up with membrane-covered backrest, headrest, polished aluminium base.
open up with flat cushion, headrest, polished aluminium base.
Cantilever chair with a membrane-covered
backrest and flat upholstery, chrome-plated
steel frame
open up model compare
Conference chair
Cantilever
Swivel chairs
Swivel chairs with neck support
Swivel chair modern classic
Cantilever modern classic
Backrest
membrane cover
flat upholstery pad
Backrest
membrane cover
flat upholstery pad
Backrest
membrane cover
flat upholstery pad
Backrest
membrane cover
flat upholstery pad
Backrest
Leather brown
Leather cognac
Leather dark brown
Leather black
Backrest
Leather brown
Leather cognac
Leather dark brown
Leather black
Castors
Castors
Castors
Castors
Castors
Castors
Base
Aluminium:
black,
white aluminium,
polished
Base
Aluminium:
black,
white aluminium,
polished
Base
Aluminium:
black,
white aluminium,
polished
Base
Aluminium:
black,
white aluminium,
polished
Base
Aluminium:
polished
Base
Steel:
chromed
Without armrests
Without armrests
Without armrests
Without armrests
Without armrests
Without armrests
Stackable
Stackable
Stackable
Stackable
Stackable
Stackable
Options
| standard | optional | |
|---|---|---|
| Backrest | Adjustable backrest pressure Dorsokinetic backrest | Adjustable lumbar support Different cover for backrest upholstery (depending on version) Backrest with flat upholstery pad |
| Armrests | Plastic armrests | Without armrests Standard armrests with leather covers 3-D armrests with soft-touch covers 3-D armrests with gel-pad covers 3-D armrests with leather covers |
| Seat mechanism | “Similar” mechanism | Similar mechanism with tension control and forward tilt 4° Large seat (30 mm larger in seat depth and width) |
| Seat height-adjustment | Gaslift with mechanical depth-springing |
|
| Base | Aluminium base, powder-coated black | Aluminium base, powder-coated white aluminium Aluminium base, polished |
Model colour | Black |
|
| Specification | Hard castors for soft floors | Soft castors for hard floors |
Technical specifications

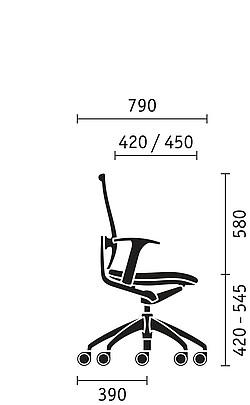

| Dimensions | |
|---|---|
| open up |
|
| User weight | Recommended for user weights up to 120 kg |
| Seat | • Anatomically shaped seating surface with pelvis support, seat hollow and rounded front edge of seat |
| Seat height-adjustment | • Gaslift with mechanical depth-springing: reinforced cushioning of the body‘s weight even in the lowest seat position, height adjustment 420 - 545 mm |
| Base | • Aluminium base, powder-coated, black, white aluminium, white or polished aluminium • Hard or soft castors with 65 mm diameter |
| Backrest | • Backrest of frame fitted with membrane covering (with 6 different colours), optional flat cushion • Flexible connection to the backrest frame (dorsokinetic system) ; in combination with the Similar mechanism the backrest reaches a wide open angle of 45° (depends on the weight of the user) • Optional height adjustable lumbar support, upholstered with black fabric, 100 mm height adjustable for precise adaptation to the back of the user • Completely recovered with leather, adjustable in height and tilt, vertical 90 mm, forward 80 °; in black leather for models in fabric, for models in leather, the leather colour matches the upholstery choice |
| Armrests | • Standard armrests with soft-touch or leather covers |
| Mechanism | • Similar mechanism with tension control: balanced force curve due to coordinated spring concept • Seat and backrest move completely synchronised with the body • Synchronicity relationship between seat and backrest 1:2.7 • Adaptation to different user weights enables sensitive latching of the rapid adjustment mechanism (leaning pressure 450 - 1200N and 550 - 1500N (stronger spring) [10N = 1 kg]) • Backrest inclination to approx. 35°, can be locked in virtually continuously variable manner (11 different settings) • Permanent back support even when the backrest is inclined backwards at a wide angle, due to uniform force distribution of the mechanical springs • Optional seat-inclination adjustment mechanism (- 4°) for even less pressure on the upper thighs |
| Standards / Certificates | • GS label by TÜV Rheinland LGA Products GmbH / DIN EN 1335 |
| Warranty | 5 years |
