se:cube max

Room-in-room systems

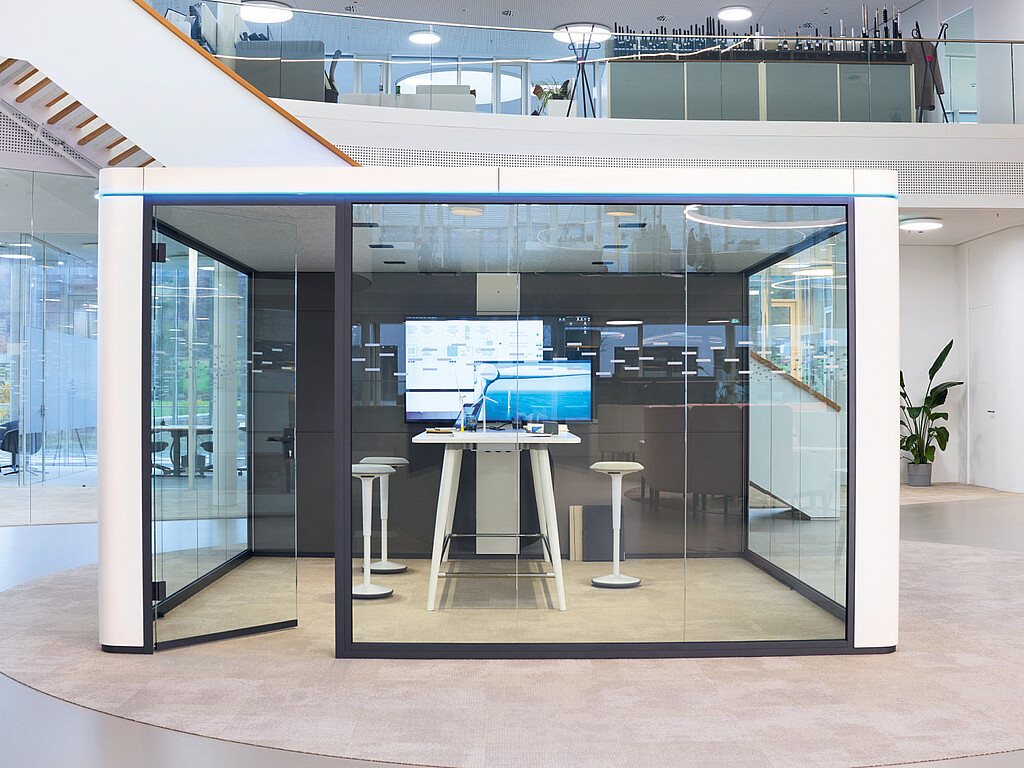

The sophisticated room-in-room system se:cube max complements the se:cube product family and offers large retreats for meetings, workshops and video conferences. The self-sufficient se:cube max can also be used as a single or double office in open-space landscapes. The base-free room-in-room system is not connected to the building structure and can, therefore, also be placed on surfaces with integrated floor heating.







Different versions and sizes are available for the se:cube max. The door side is always fully glazed. In addition, one or two other sides can be glazed.

se:cube max S
3 x 3 m

se:cube max M
4 x 3 m

se:cube max L
4 x 4 m

Impressions

Technical wall

At least one wall is always designed as a closed technical wall. It is the core of the se:cube max and contains the ventilation unit as well as all necessary connections for the room’s power supply.

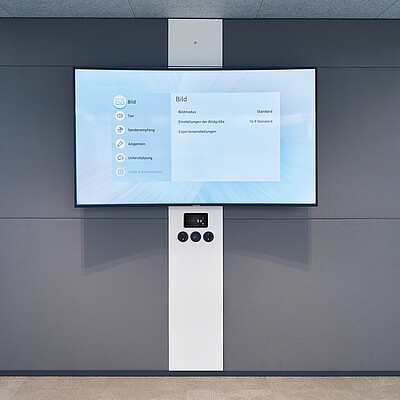

Structure of the technical wall

  1. Air outlet for exhaust air (in the ceiling)
  2. Fabric-covered or PET felt-covered panels on the technical wall improve room acoustics
  3. Presence detector
  4. As an option, it is possible to use a whiteboard in the middle section
  5. Technical panel:
    1. hides cables and power supply
    2. connections: 2× power, 1× USB charger
    3. monitor mounting option (standing or sitting height)
  6. Concealed fan and sound-insulated exhaust air ducts inside the technical wall
  7. Air inlet for stale air from the interior and inspection flap for replacing the air filter

Presence lighting

A glowing red or blue LED line indicates that the se:cube max is currently occupied.

Air inlets in the ceiling

Fresh air is drawn into the room via an invisible sound absorber integrated in the acoustic ceiling.

Presence detector

The presence detector is used for fully automatic lighting and ventilation control.

Concealed fan

Air inlet for stale air from the interior and inspection flap for replacing the air filter.

Wheelchair-accessible

se:cube max is placed on the existing building infrastructure without a base and is wheelchair-accessible as there is no door threshold.

Lighting on demand

Depending on the application, various lighting set-ups are available for the se:cube max:

1. Meeting lighting set-up
In this set-up, two LED panels are mounted in the centre of the room and perpendicular to the technical wall. This allows for homogeneous illumination of the workspace when a conference table is set up facing the technical wall. Users can choose between dimmable lighting and a version with colour temperature change and HCL control.

2. Workshop lighting set-up
Depending on the size of the room, 4 to 6 dimmable LED luminaires are evenly distributed across the room and integrated flush into the ceiling. The widearea illumination of the room is optimal for movable furniture on castors and is thus ideally suited for workshop environments.

Good acoustics for every place

The sound insulation of the se:cube max is so good that the room-in-room system can be positioned in the middle of an office without neighbouring areas interfering with each other in terms of acoustics. se:cube max uses ceiling and wall absorbers specifically made for this purpose. The following factors also influence the room acoustics of the se:cube max: flooring, number of glazed or closed walls, interior design.

se:cube max is a closed-off room with acoustically effective components which interrupt the propagation of sound and improve speech intelligibility inside. The sound level reduction is 29 dB(A)*. Disturbing noises from the outside are not eliminated completely, however, they are significantly reduced.

*according to DIN EN ISO 11957 (2010)

Office noise is reduced such that it is hardly perceptible inside.

In a typical office environment, conversations inside the se:cube max are no longer comprehensible outside.

The PET felt panels in the ceiling and the fully insulated technical wall improve the reverberation time of the room-in-room system.

Fresh air and quiet ventilation

With the independent ventilation of the se:cube max, fresh air is supplied via the air inlets in the ceiling. The stale air is drawn into the lower part of the technical panel and released back into the surrounding room via the fans above the technical panel.
Large cross-sections and sound-insulated ventilation ducts ensure that the room is extensively ventilated and that, at the same time, noise is not transmitted. This means that the process is quiet and there is no perceivable draught. An additional air filter can be integrated as an option.





Ventilation control is fully automatic via a presence detector with a temperature sensor and CO2 sensor. There is also an option to order a remote switch for manual operation.

1.    Fresh air
2.    Exhaust air

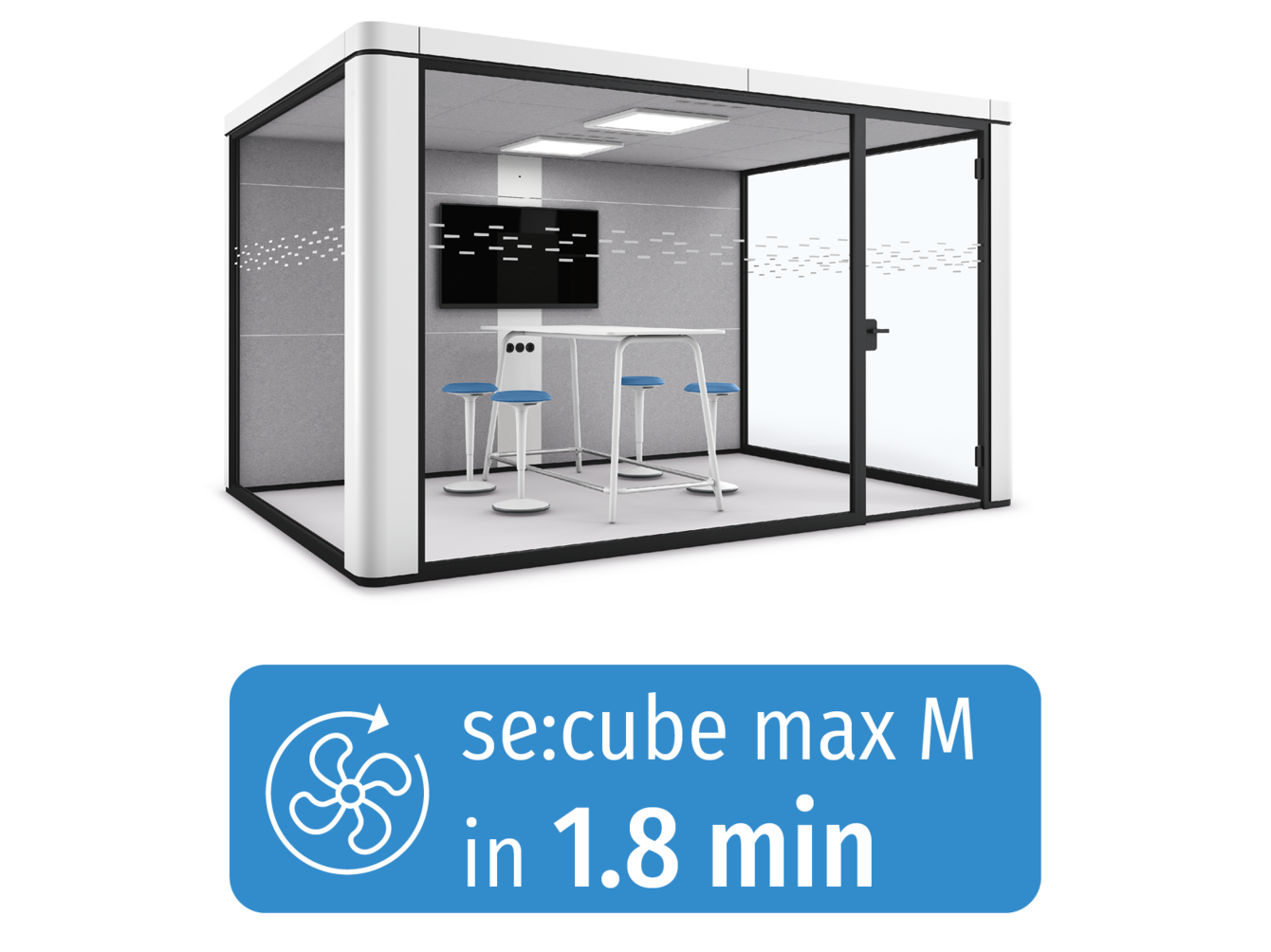

Complete exchange of air at 100% fan power

Interior and exterior walls with whiteboard

The upright wall panels of the closed walls of the se:cube max can be configured with writable whiteboard surfaces both on the inside and outside. The panels can be easily exchanged at a later date without using any tools. On the technical wall with the horizontal panels, the middle panel can also be supplemented with a whiteboard. It is also possible to mount a screen, in addition to a whiteboard.

Whiteboard panel on the technical wall and closed interior wall

Whiteboard panel on exterior wall

Design features

se:cube max is available in three sizes and various furnishing options. Its technical equipment and optional elements make the system a top-class workstation.

se:cube models compared

se:cube S
se:cube M
se:cube L
se:cube max S
se:cube max M
se:cube max L
SIZE (W x D x H)

1.5 x 1 x 2.32 m

SIZE (W x D x H)

2 x 1.5 x 2.32 m

SIZE (W x D x H)

2,5 x 2,5 x 2,32 m

SIZE (W x D x H)

3 x 3 x 2.4 m

SIZE (W x D x H)

3 x 4 x 2.4 m
4 x 3 x 2.4 m

SIZE (W x D x H)

4 x 4 x 2.4 m

SUITABLE FOR

1 person

SUITABLE FOR

4 persons maximum

SUITABLE FOR

6 persons maximum

SUITABLE FOR

4 persons maximum

SUITABLE FOR

6 persons maximum

SUITABLE FOR

8 persons maximum

EXAMPLES
FOR USE

Phone calls
Concentrated individual work
Video and web conferences

EXAMPLES
OF USE

Concentrated work
Video and web conferences
Working in pairs

EXAMPLES
OF USE

Video conferences
Brainstorming sessions
Meetings

EXAMPLES
OF USE

Meetings
Workshops
Temporary single office

EXAMPLES
OF USE

Meetings
Workshops
Temporary single/double office

EXAMPLES
OF USE

Meetings
Workshops
Temporary single/double office

WHEELCHAIR-ACCESSIBLE
WHEELCHAIR-ACCESSIBLE
WHEELCHAIR-ACCESSIBLE
WHEELCHAIR-ACCESSIBLE
WHEELCHAIR-ACCESSIBLE
WHEELCHAIR-ACCESSIBLE
COMPLETE AIR EXCHANGE

In 1 min

COMPLETE AIR EXCHANGE

In 1.4 min

COMPLETE AIR EXCHANGE

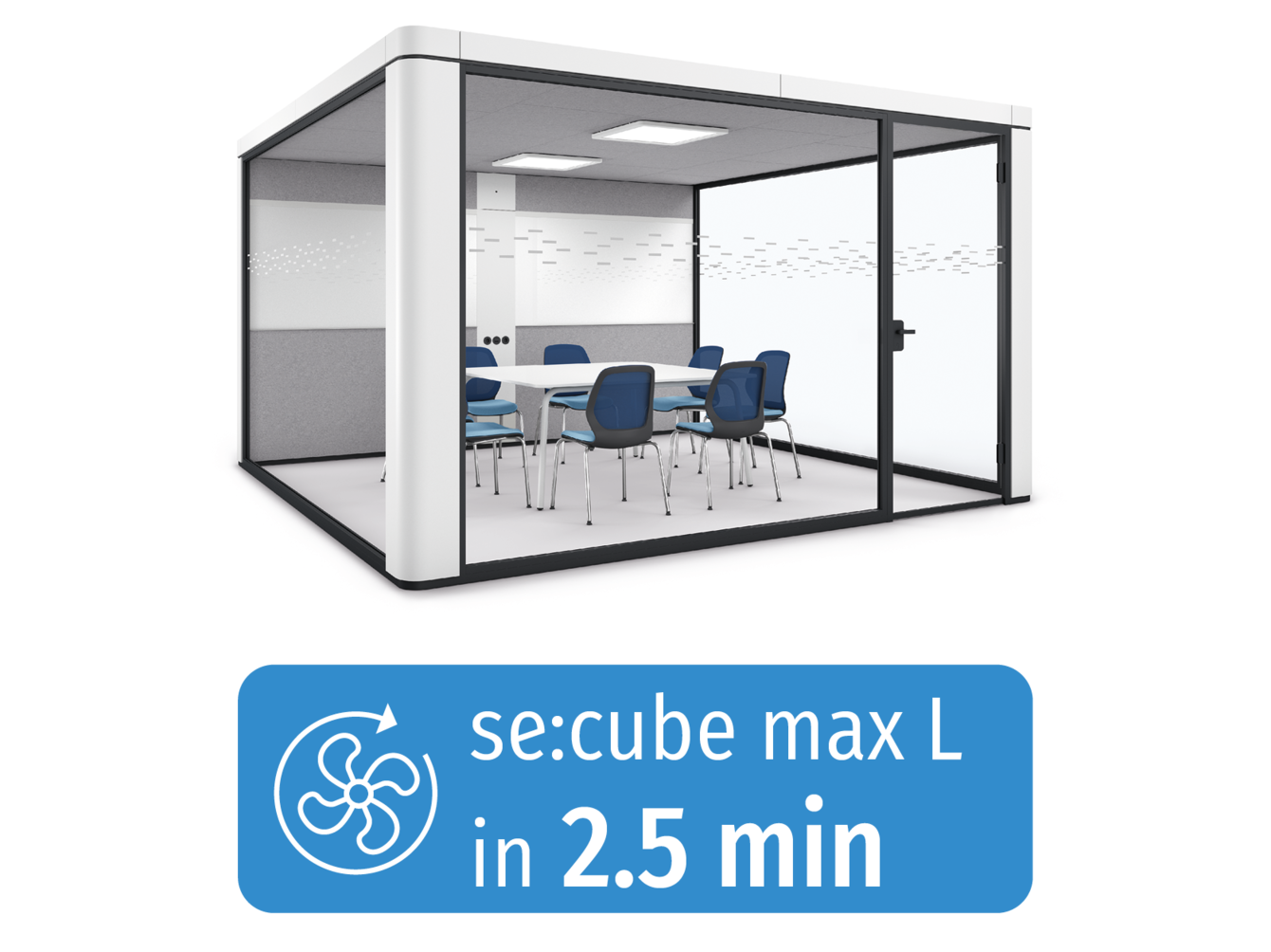

In 2.5 min

COMPLETE AIR EXCHANGE

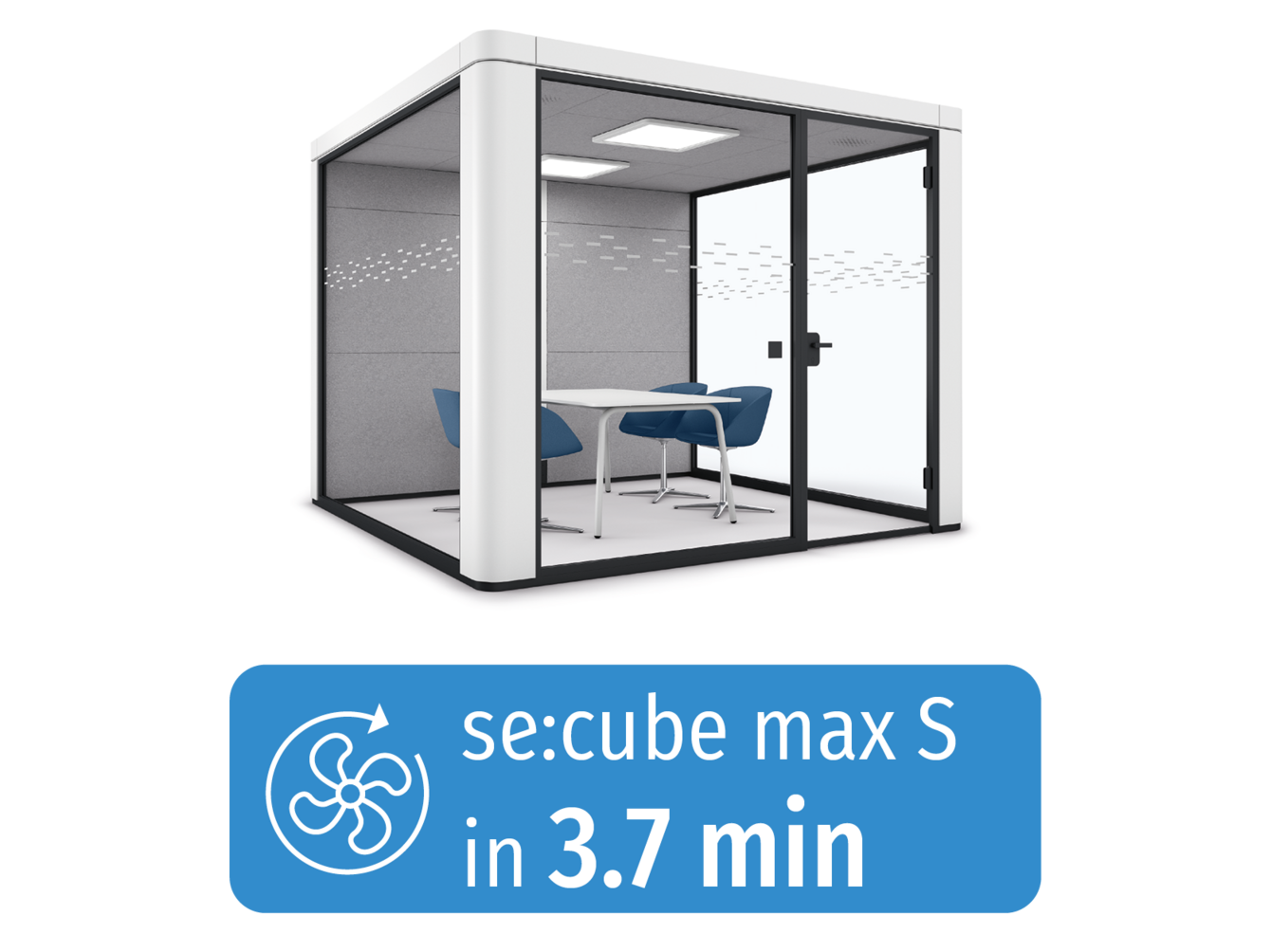

In 3.7 min

COMPLETE AIR EXCHANGE

In 5 min

COMPLETE EXCHANGE OF AIR

In 6.7 min

GLAZING

Possible on one or two sides

GLAZING

Possible on one or two sides

GLAZING

Possible on one or two sides

GLAZING

Possible on one, two or three sides

GLAZING

Possible on one, two or three sides

GLAZING

Possible on one or two sides

DOOR OPENING

To the outside

DOOR OPENING

To the outside

DOOR OPENING

To the outside

DOOR OPENING

To the inside

DOOR OPENING

To the inside

DOOR OPENING

To the inside

se:cube max S
se:cube max M
se:cube max L
