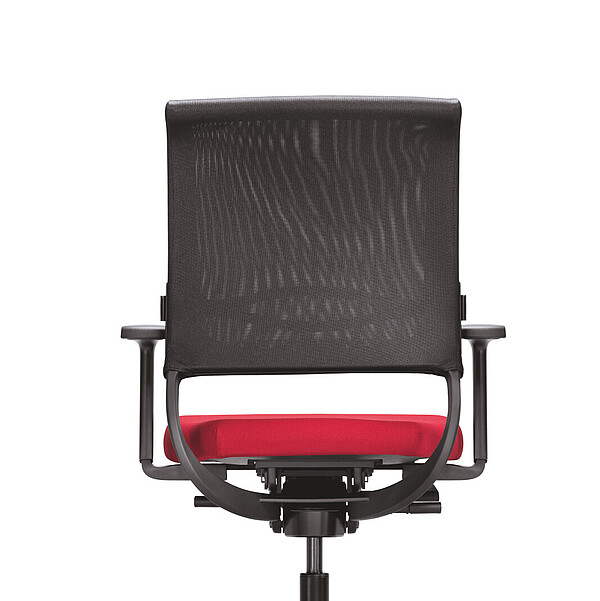

Sedus netwin combines the transparent lightness of the mesh look with the comfort of a fully upholstered chair. The one-piece, generously proportioned backrest frame provides an elegant solution. The double membrane, which is made from patented high-tech fabric, is elaborately framed. This technically and visually impressive design ensures high sitting comfort and optimal distribution of weight for users of all sizes.
With its instant adjustment of spring force, the Sedus “Similar” mechanism holds and supports your back whichever way you move, and at the same time prevents the annoying “shirt-pulling” effect. The extreme opening angle of the backrest of up to 32° enables various comfortable sitting positions, reclining almost to a lying position. Even in the lowest sitting position, the bodyweight is absorbed by the gas lift mechanism for height adjustment with mechanical depth springing, thus reducing stress on the back.
Swivel chairs with 4D adjustable armrests, polished aluminium base
Swivel chairs with 4D adjustable armrests, white aluminium base
Swivel chair without armrests, plastic base
9 colours for the backrest membrane, 16 shades of leather and over 140 different seat coverings and colours for the seat cushion: this results in a massive variety of possible combinations, completely according to the customer's choice, whether tone on tone or with colour contrast
With height adjustment or 4D adjustment used too many times for altering height, depth and width
The patented spring force quick adjustment is simply activated with a handle
The seat cushion can be pushed forwards or backwards, in order to provide just the right amount of support for the legs of the individual and thus ensure ergonomically correct sitting
Not too hard, not too soft: The backrest pressure can be adjusted according to bodyweight.
Thus, the backrest offers good support without dominating
The controls are intuitive to use, conveniently positioned, clearly marked and functionally formed, in order to make individual adaptation particularly easy
We purchase around two thirds of the steel, aluminium and wood which we require to produce our products in Germany and almost all the rest from Europe, this helps us to avoid long delivery routes whilst, at the same time, boosting the local economy. We use materials which have been tested and assessed with respect to potentially adverse effects on human health and the environment.
| standard | optional | |
|---|---|---|
Backrest | Height-adjustable lumbar support Quick backrest pressure adjustment |
|
| Armrests | Height-adjustable plastic armrests | Without armrests 4-D armrests with soft-touch covers |
| Seat mechanism | “Similar” mechanism | “Similar” mechanism with seat tilt adjustment Sliding seat (adjustment range 60 mm) |
| Seat height-adjustment | Gaslift with mechanical depth-springing | Gas lift mechanism |
| Base | Plastic base | Aluminium base, powder-coated black Aluminium base, powder-coated white aluminium Aluminium base, polished |
| Model colour (mechanism and plastic parts) | Black | |
| Specification | Hard castors for soft floors | Soft castors for hard floors |
| Dimensions | |
|---|---|
| netwin |
|
| User weight | Recommended for user weights up to 110 kg |
| Seat | • Anatomically shaped seating surface with pelvis support, seat hollow and rounded front edge of seat |
| Seat height-adjustment | • Gaslift with mechanical depth-springing: reinforced cushioning of the body‘s weight even in the lowest seat position, height adjustment 400 - 520 mm |
| Base | • Basic base made of plastic (polyamide, glass-fibre reinforced), black, castors with 50 mm diameter • Optional aluminium base, powder-coated, black, white aluminium or polished aluminium, castors with 65 mm diameter • Hard or soft castors |
| Backrest | • Black plastic frame made of fibreglass-reinforced polyamide, covered with woven-knit membrane, air and moisture permeable, which guarantees an always perfect reshaping of the double net • Lumbar adjustment mechanism (height adjustment 70 mm) integrated in the backrest frame and double membrane; automatic depth adaptation due to weight-dependent sinking of the body into the double membrane |
| Armrests | • Height-adjustable plastic armrests (3611) in black, height adjustment 100 mm (200 - 300 mm), clear width 470 - 490 mm |
| Standards/ Certificates | • GS label by TÜV Rheinland LGA Products GmbH / DIN EN 1335 |
| Warranty | 5 years |
